SLP 23RB

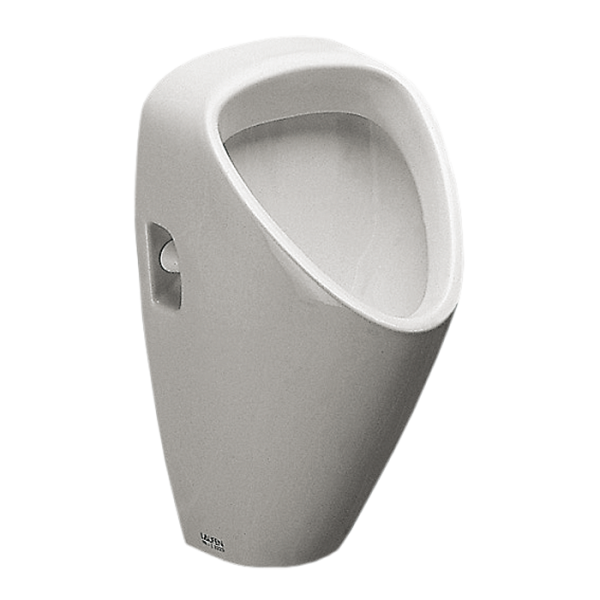

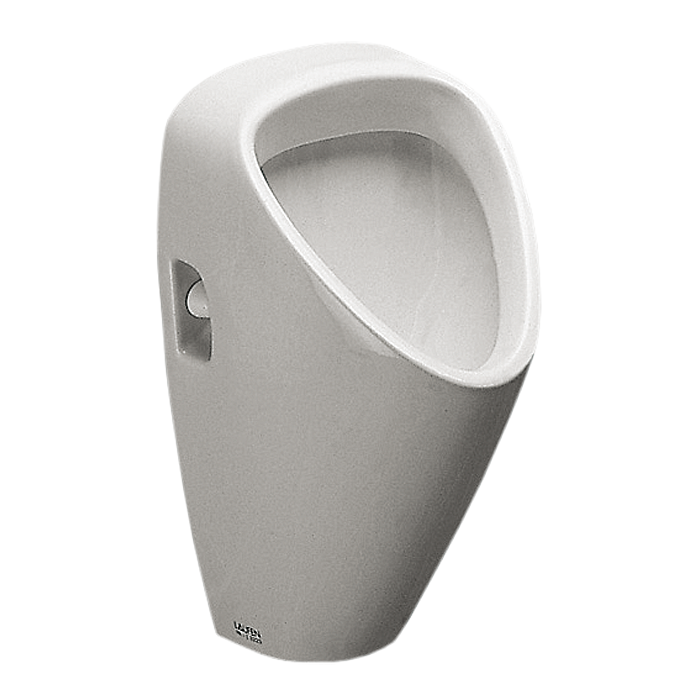

Urinal Caprino with a radar flushing unit, 6 V
We are sorry, but this product is no longer in our offer. Please, try to choose another from our offer
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal,when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01230
I am interested in more information:
Supply specification
SLP 23RB - Supply No. 01230 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
| Power supply: | battery operated |
| Location: | behind the urinal |
| Flushing unit: | urinal included |
| Control: | radar |
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Downloads
- Mounting instructions (4.17 MB)
- Catalogue list (264.28 kB)
- 2D Drawing (597.08 kB)
