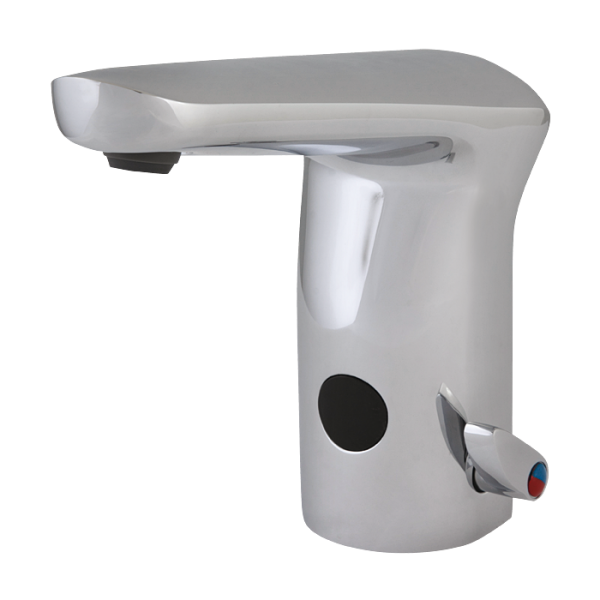

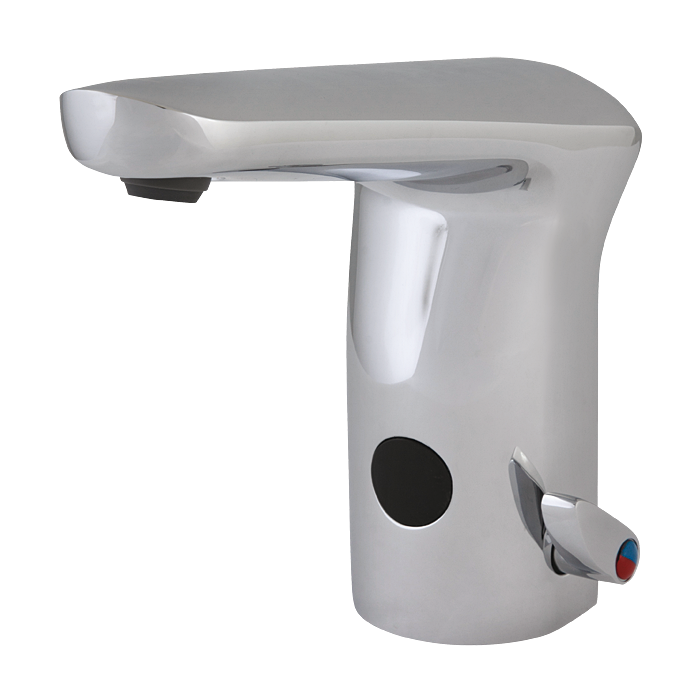

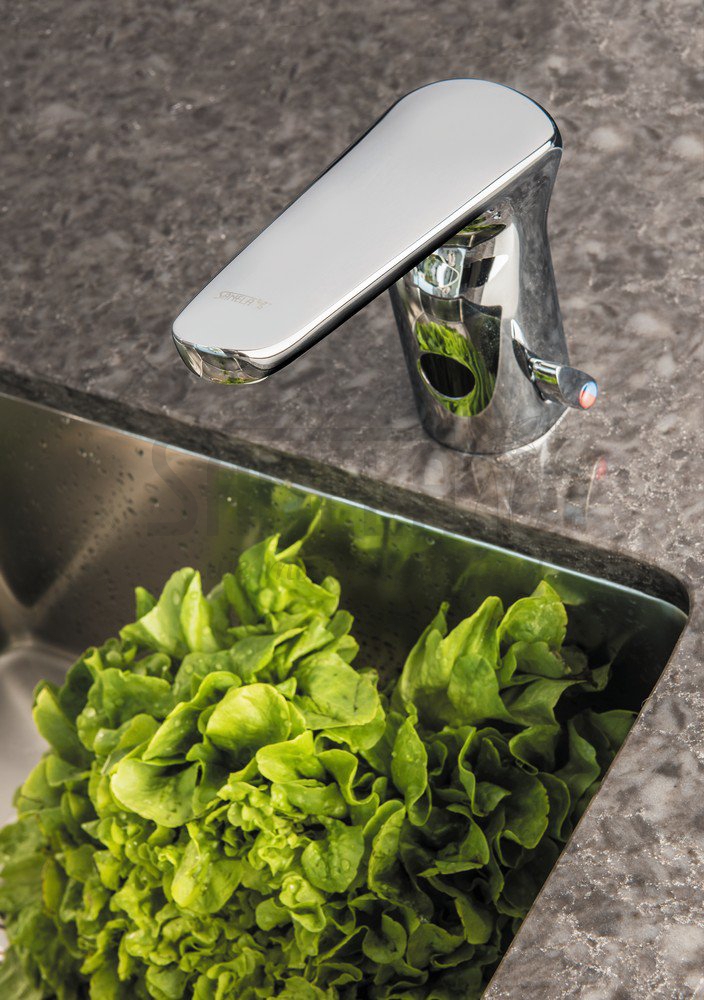

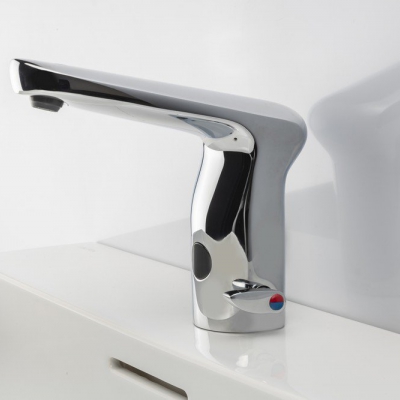

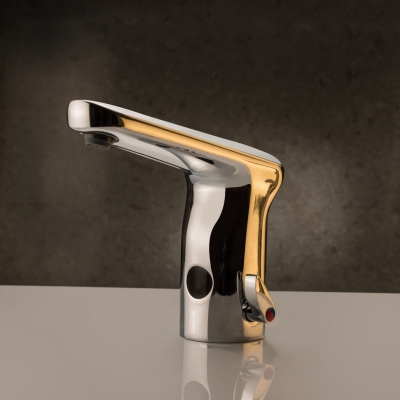

SLU 37
Washbasin mixer, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economical aerator, rate of flow 6 l/min
- hygienic flush
- possibility of water temperature adjustment by mixer and follow-up plug by cover
- electromagnetic valve is in the tap body
- is destined for cold and hot water, temperature is regulated by mixer
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 03370
I am interested in more information:
Supply specification
SLU 37 - Supply No. 03370 - faucet with mixer, electronics and electromagnetic valve, connecting hoses, angle valve with filter and check valve (2 pcs.), cover for temperature mixer
Technical information
| Material: | chrome |
| Temperature regulation: | with mixer |
| Power supply: | 24V DC |
| Control: | infra-red |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.47 MB)
- Catalogue list (213.02 kB)
- 2D Drawing (641.5 kB)
