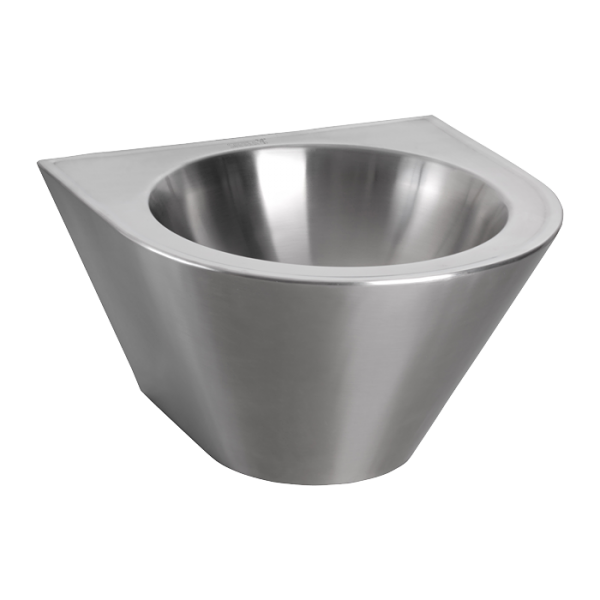

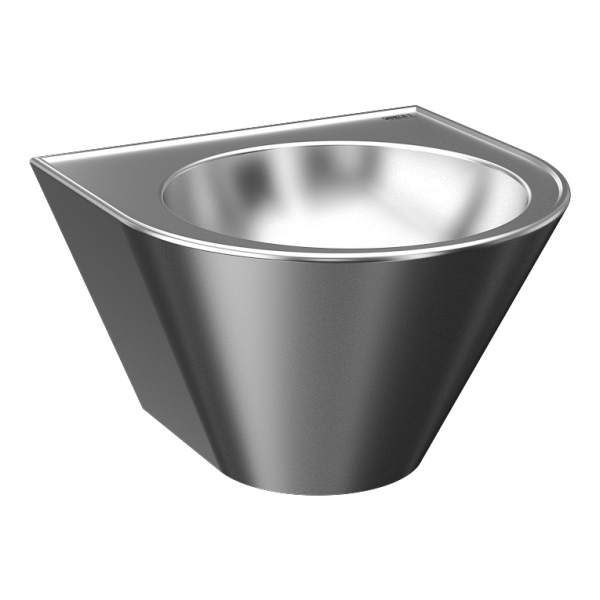

SLUN 22M
Vandal-proof stainless steel wall hung conical washbasin, Ø 320 mm
Characteristics
- vandal-proof
- suitable for a prison
- stainless steel wall hung washbasin
- rear assembling by screws (M10, length 190 mm) from the service room
- without a tap hole
- filled with expanded polyurethane (to avoid dents and typical metal noise)
- material AISI - 304
- brushed finish
- Order number: 83226
I am interested in more information:
Supply specification
SLUN 22M - Supply No. 83226 - stainless steel conical washbasin, stainless steel outlet pipe and screws
Technical information
| Installation: | from the service room (M10 screws) |
| Category: | washbasin |
Downloads
- Mounting instructions (4.17 MB)
- Catalogue list (134.6 kB)
- 2D Drawing (68.2 kB)
